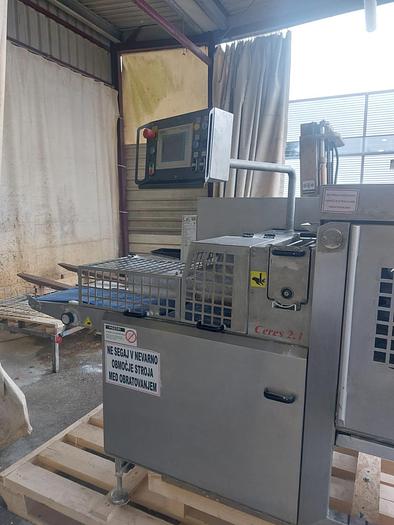

Dough Divider CERES 2.1

CERES 2.1-TR350/Ö-IK600-SS830-TVS1040-KBW 310/TVR 40-GT

125/UK- WBSE450/322-AL310

USED from the bakery

Performance data:

- Hourly output max. 1,500 pieces / h (= 25 strokes / min of the guillotine)

or max. 1,200 kg / h

or max. 3.5 m dough strand / min

- Hourly output min. 400 pieces / h (= 7 strokes / min of the guillotine)

or min. 280 kg / h

or min. 1 m dough strand / min

Construction:

Base frame steel painted red - Mostly made of stainless steel

Control:

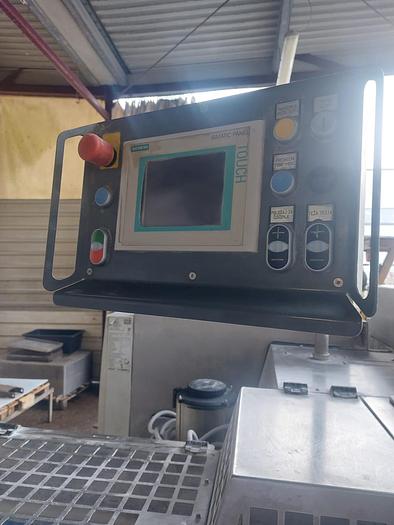

- PLC - Siemens S7/313 control with touch panel "TP 177B – Colour“

- 3 x 400 V / 50 Hz, P total 0.7 kW

1 dough funnel TR350/Ö

- dough funnel capacity 350 l - with oiling device Beka-MAX

- diameter 800 mm, height 900 mm

- entire dough funnel can be folded up using an electric motor

- own drive

1 inner cone for dough funnel IK600

- cone diameter 600 mm

- cone height 685 mm

- automatic oiling Beka-MAX

- own drive

1 cutting disc SS830

- diameter 830 mm

- adjustable cutting gap 0 – 100 mm

- own drive

1 transfer disc TVS1040

- dough support FAW support

- diameter 1,040 mm

- upstream dust collector

- own drive

1 crawling belt KBW 310 / TVR 40

- Nominal width 310 mm

- Duster over crawling belt for flouring dough strands from above

- Transfer roller in front of guillotine Ø 40 mm

- Own drive

1 guillotine GT125/UK

- Blade stroke 120 mm

- Lower blade stroke 40 mm

- Blade length 306 mm

- Max. cycle rate 25 strokes / min

- Drive servo motor planetary gear with needle bearing

1 weighing belt WBSE 450 / 322

- Weighing length 450 mm, belt width 322 mm

- Own drive gear with needle bearing system BL42

60 watts / 48 V - AXOR

- Installation on parallel weighing bridge

- Weighing belt quick unloading

- 1 weighing sensor - beige bar, Siwarex system nominal load 20 kg (Siemens)

1 discharge conveyor AL310

- Nominal width 310 mm

- Belt length 800 mm

Belt quick unloading, own drive gear with needle bearing

BL 57 AL/180 Watt -AXOR

- Output height 800 – 900 mm adjustable

1 automatic oiling system

- Pump system BEKA – MAX with 6 outlets Ø 6 mm push in. - Drive Servex FHD 40 IE

Discharge quantity 0 – 600 ml / h
